Simple Type Palm Oil Processing Machine

The simple type palm oil processing machine is a compact and cost-effective system designed for small to medium-scale producers. Consisting of several core units, it forms a semi-automated palm oil processing line that covers the essential steps of palm oil extraction and clarification. Below is a detailed introduction to its key components and functions.

1. Simple Type Palm Fruit Threshing Machine

The simple type palm fruit threshing machine automates the initial step of separating palm fruits from the bunches. It features an internal rotating mechanism that gently detaches the fruits without damaging them. The fruits then slide down an inclined surface for easy collection. This palm oil processing machine significantly reduces the manual labor and time required in traditional threshing methods.

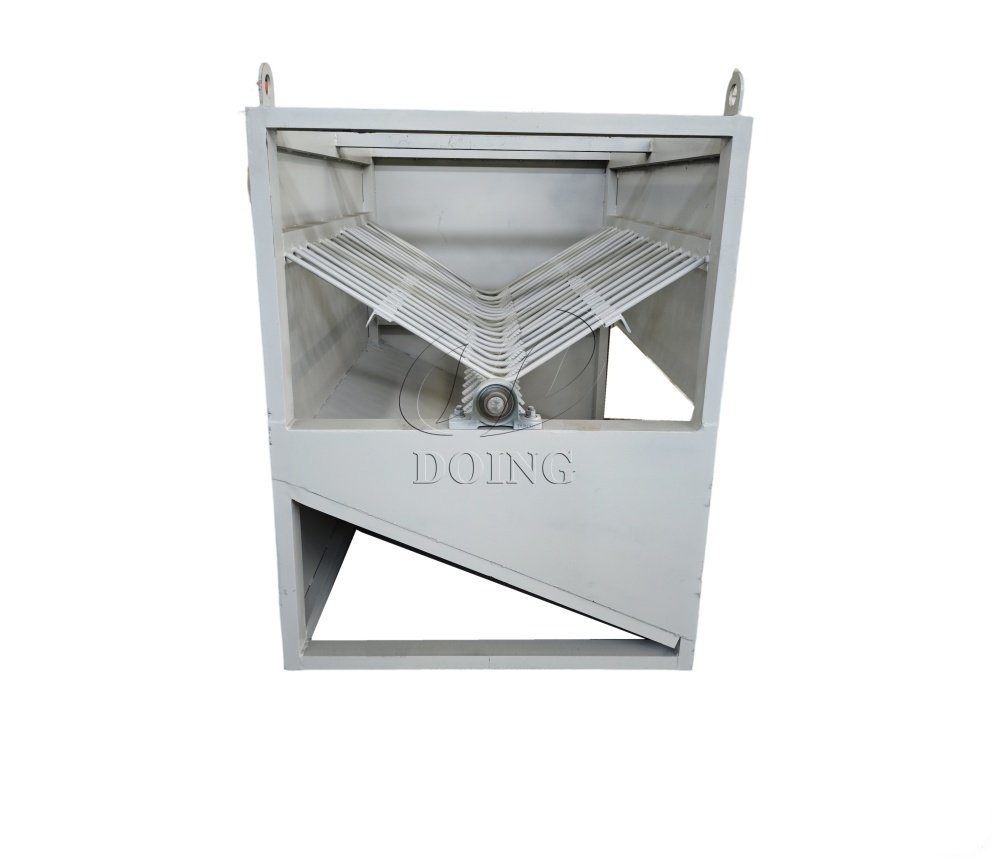

Simple type palm fruit threshing machine

2. Screw Palm Oil Pressing Machine

As the core of the simple type palm oil processing machine, the screw palm oil pressing machine extracts crude oil from the threshed fruits. Two configurations are available to suit different production scales:

(1) Single-Screw Palm Oil Pressing Machine: With a processing capacity of around 500 kg/h, this model is perfect for startups and very small-scale farms. It is economical and easy to operate.

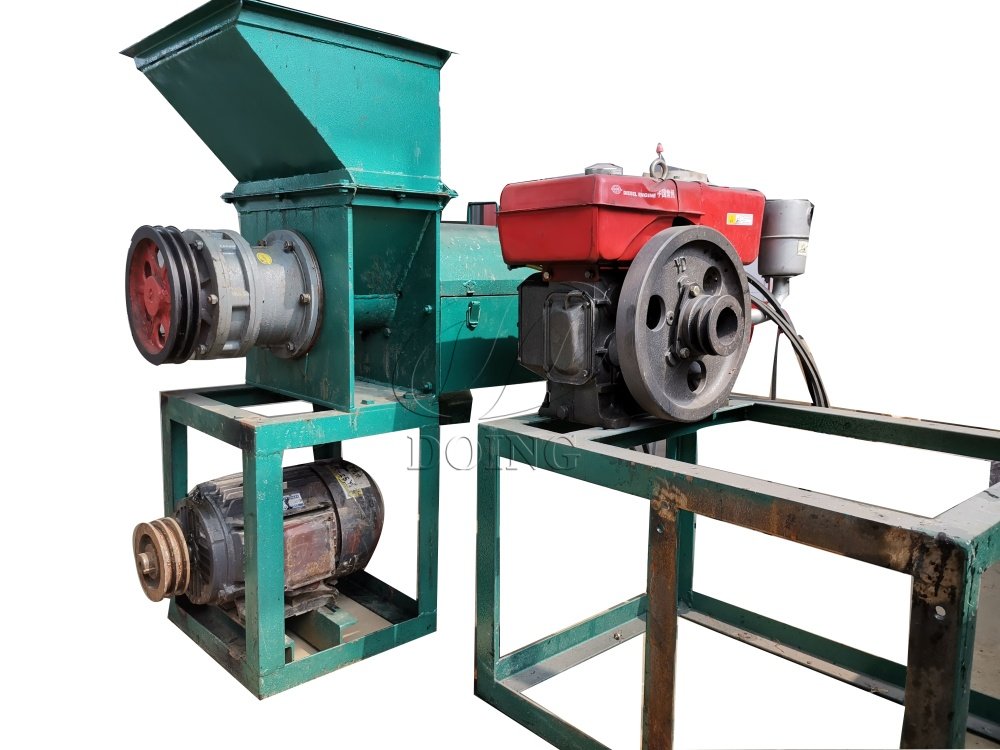

Single-screw palm oil pressing machine

(2) Double-Screw Palm Oil Pressing Machine: Designed for higher output, with capacities of 1 t/h or 2 t/h. The double-screw mechanism enhances pressure and extraction efficiency, making it ideal for expanding businesses seeking higher yields.

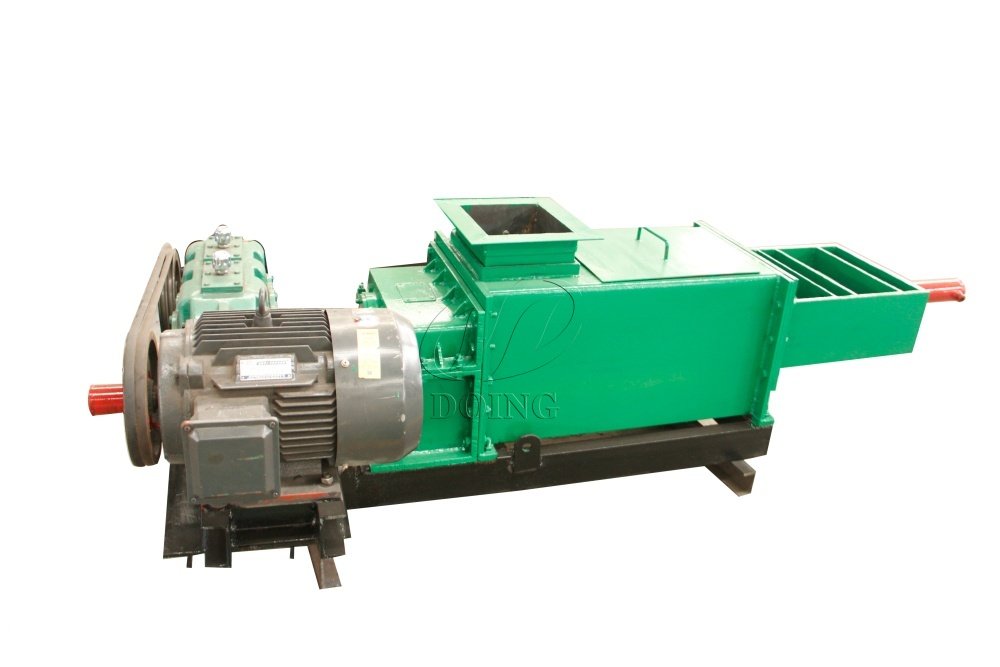

Double-screw palm oil pressing machine

3. Plate and Frame Filter

After pressing, the crude palm oil contains fine impurities and sediment. The plate and frame filter performs the final purification by passing the oil through multiple layers of filter cloth. This results in clear, high-quality palm oil that meets quality standards.

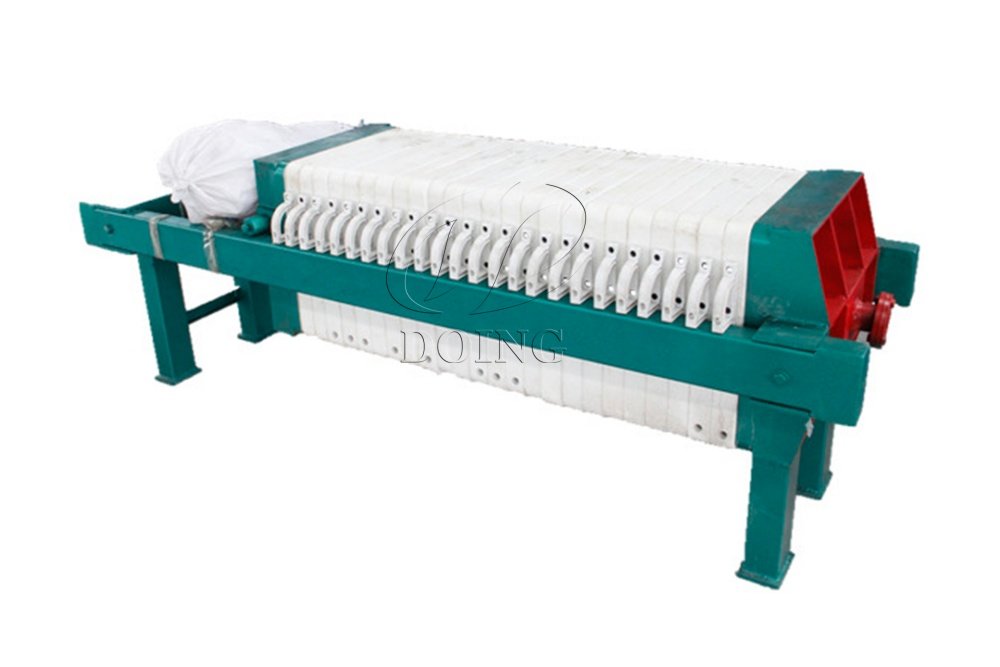

Plate and frame filter

4. Vibrating Screen (Optional)

For producers aiming to further optimize palm oil processing efficiency, a vibrating screen can be added between the pressing machine and the plate filter. It serves as a pre-filtration unit, removing larger particles such as fibers and shell fragments. By doing so, it reduces clogging in the plate filter, minimizes cleaning frequency, and extends palm oil processing machine service life.

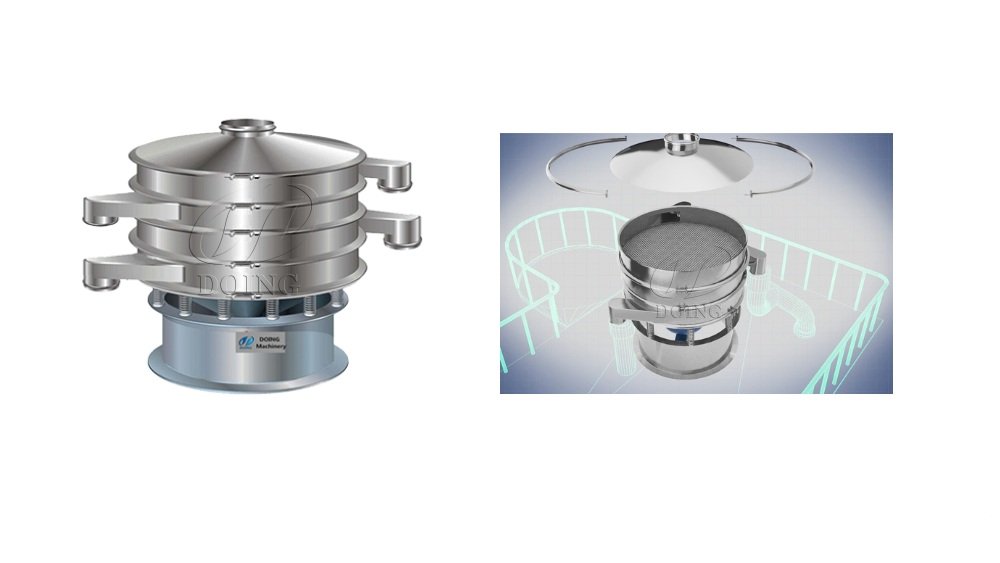

Vibrating screen

In summary, the simple type palm oil processing machine integrates essential operations—threshing, pressing, and filtering—into one streamlined system. It is especially suitable for producers seeking to enhance productivity with limited investment. Depending on the scale and needs, you can select the appropriate pressing machine and choose to include auxiliary equipment such as the vibrating screen.
