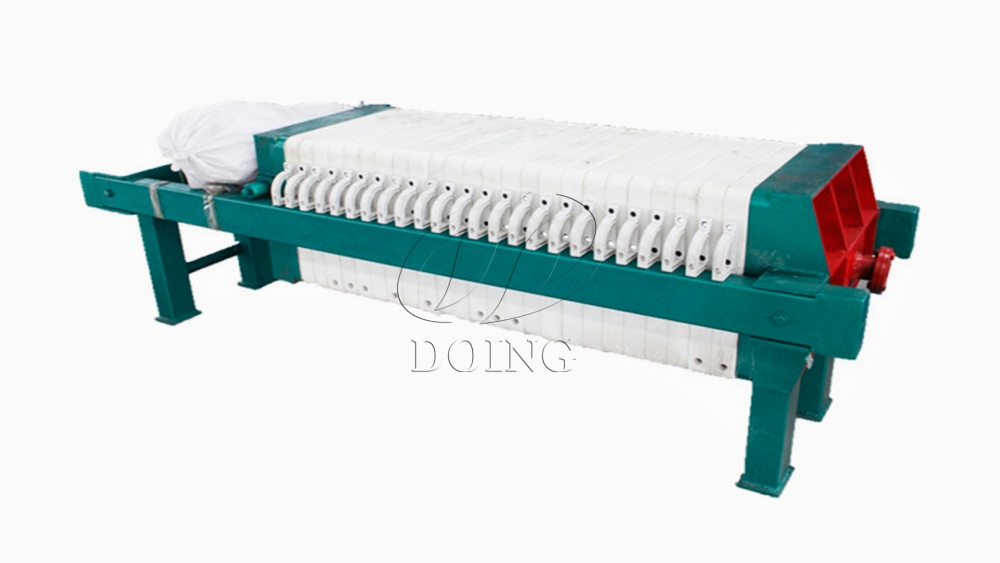

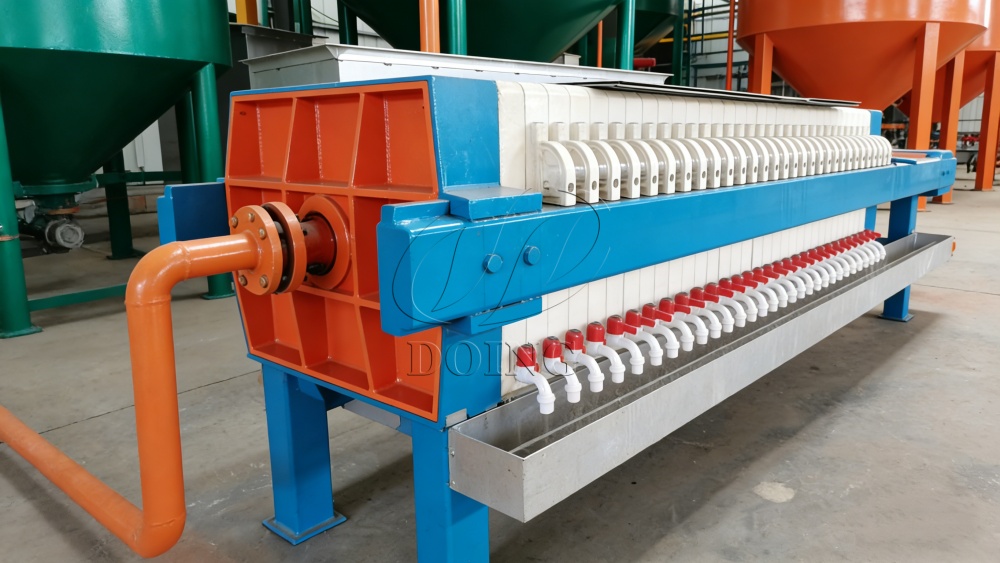

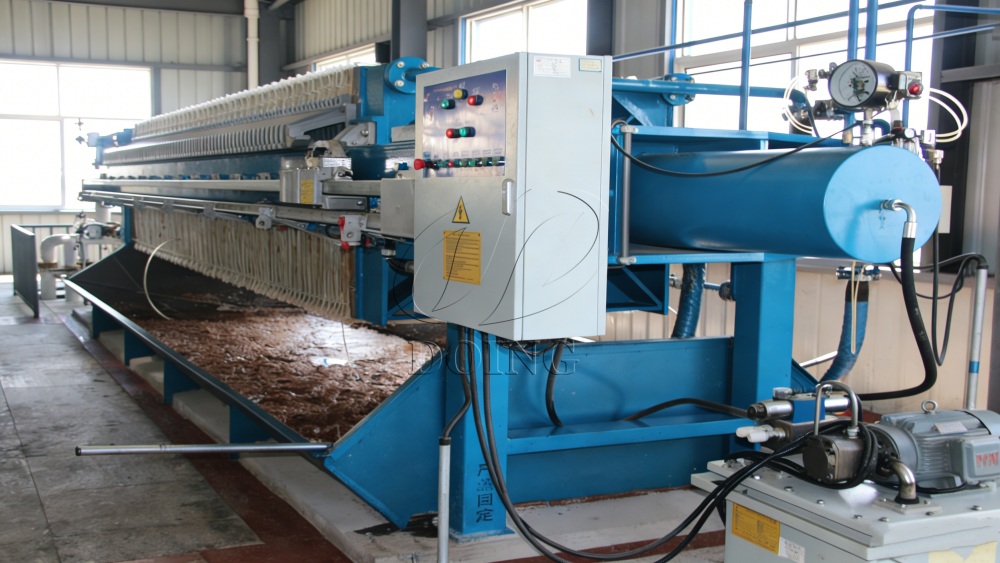

Plate and Frame Filter

Henan Glory's plate and frame filter is designed with user-friendliness, efficiency, and a compact structure as the core, ensuring easy installation and flexible deployment to adapt to different on-site conditions. It is widely used in palm oil filtration and purification, and other liquid-solid separation scenarios, making it an ideal choice for small and medium-sized palm oil processing plants.

Plate and frame filter

Working Principle

The plate and frame filter is a classic and mature solid-liquid separation device with a compact and reasonable structure. It operates through a pressure-driven filtration process. The filter plates are clamped tightly to form the closed filter chambers, and the material to be filtered is pumped into these chambers by a feed pump. Under the specified pressure (≤0.6Mpa), the palm oil permeates through the filter cloth, while solid impurities are trapped to form filter cakes, achieving precise filtration. After completion, the filter plates are released to allow the cakes to be discharged, realizing efficient solid-liquid separation.

Plate and frame filter

Main Parameters

Outstanding Features

(1) Easy Installation with Video Guidance: Adopts a modular design and pre-connected pipeline interfaces, minimizing on-site assembly steps. We provide high-definition installation videos covering unpacking inspection, component assembly, pipeline connection, and commissioning steps, allowing users to complete installation independently in a short time. No professional technical team is required, saving substantial installation time and labor costs.

(2) Stable and Efficient Filtration Performance: The precise filter plate design and reliable clamping structure ensure uniform pressure distribution in the filter chamber and high filtration accuracy. It effectively removes impurities from the oil, improving the purity and clarity of palm oil, with an extremely high solid recovery rate.

(3) Durable and Long Service Life: Key components are made of high-quality SUS304/316L stainless steel or carbon steel, offering strong corrosion and wear resistance. The filter plate features a special structural design to avoid damage to the filter cloth and extend the service life of consumables.

(4) Flexible Model Selection: Covers a wide range of processing capacities, ranging from small-scale 500kg/h to large-scale requirements. The number of filter plates can be increased or decreased according to production requirements, adapting to diverse application scenarios—whether for independent use or integration into a complete palm oil production line, it ensures the purity of filtered oil for direct use or further refining.

Plate and frame filter

(5) Simple Maintenance and Low Costs: The filter plates and filter cloth are easy to disassemble and replace. Daily maintenance only requires regular cleaning and inspection, with few wearing parts, significantly reducing subsequent maintenance costs and downtime.

(6) Wide Adaptability: Not only suitable for palm oil and various edible oil filtration, but also applicable to the separation of industrial oils, chemical liquids, wastewater, and other materials. It meets the filtration needs of different industries such as food processing, chemical engineering, environmental protection, and pharmaceuticals.

In addition to the plate and frame filter, Henan Glory also supplies a full range of oil processing equipment including palm oil press machines and oil refining equipment. We can provide customized solutions according to your specific processing capacity, product requirements and on-site conditions. Whether you need a single filter unit or a complete palm oil production line, our professional technical team provides one-stop services, including technical consultation, solution design, installation guidance and after-sales support. Contact us for detailed product catalogs and quotations!
