Double Screw Palm Oil Press Machine

Henan Glory's double screw palm oil press machine is a mechanical pressing device specifically designed for extracting crude palm oil from fresh oil palm fruits. Currently, it is widely adopted in major palm-producing countries such as Indonesia and Malaysia, and adaptable to production requirements of varying scales.

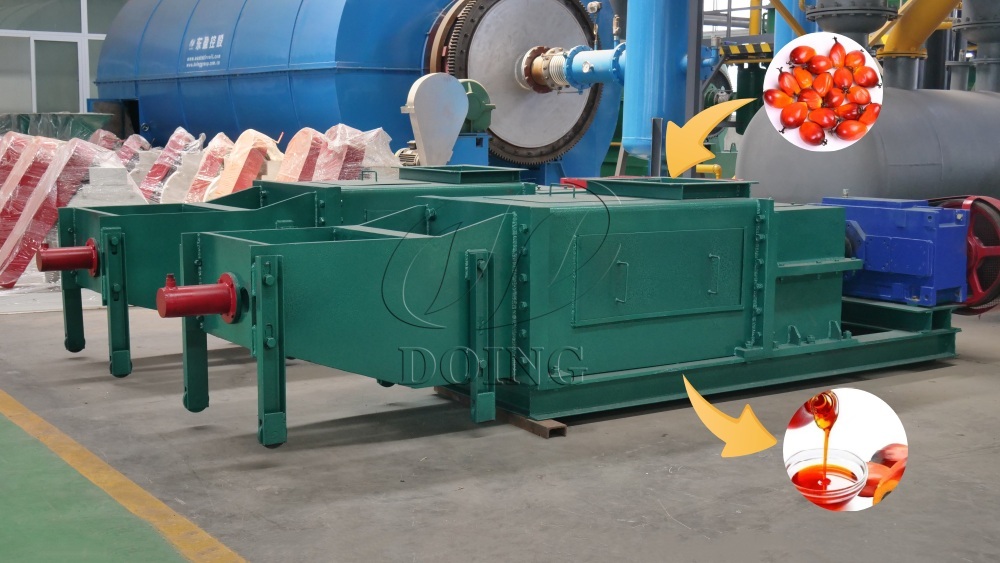

Double screw palm oil press machine

Structure and Composition of the Double Screw Palm Oil Press Machine

Main Body: Includes the frame, pressing chamber, feed inlet, discharge outlet, and oil press outlet.

Power and Transmission System: Comprises the motor, hardened tooth surface reducer, gearbox, etc.

Core Pressing Components: Two intermeshing screw shafts (pressing screws) and the pressing chamber.

Hydraulic System: Usually includes a hydraulic pump station and hydraulic cylinders.

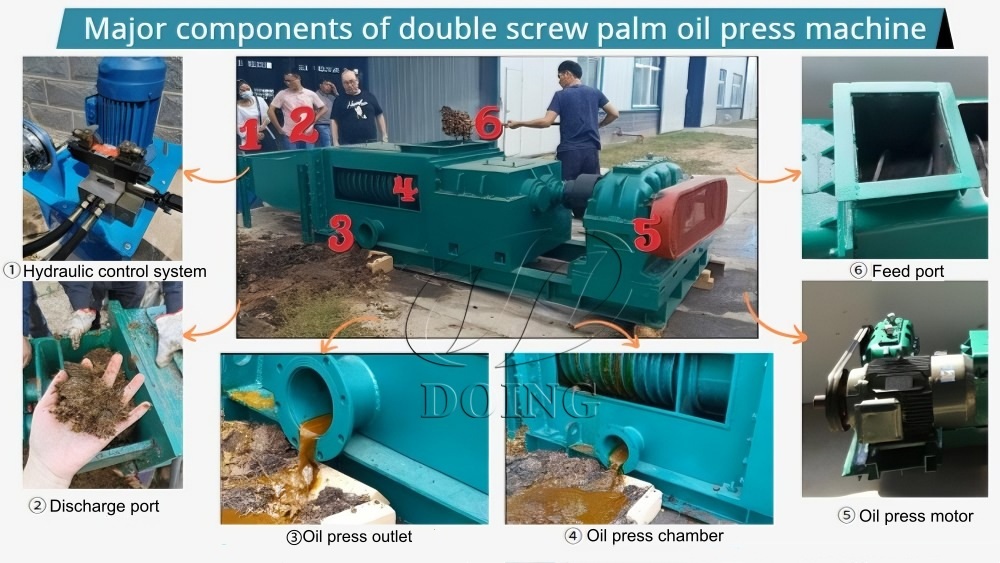

Major components of double screw palm oil press machine

Key Performance Parameters

Henan Glory's double screw palm oil press machine offers two material options: carbon steel and stainless steel, and is available in models such as 1tph, 5tph, 10tph, 15tph based on processing capacity.

The following parameters are for the 1t/h model:

Core Working Principle

After palm fruits enter the pressing chamber, the two pressing screws rotate counter-directionally driven by the tail gearbox and hydraulic pump station, conveying and squeezing the materials forward during meshing. The space of the pressing chamber gradually decreases as the material advances, and the pressure rises continuously, thereby squeezing and separating oil from the pulp. The press cake is discharged from the cake outlet, while palm oil flows out through the oil press outlet for collection.

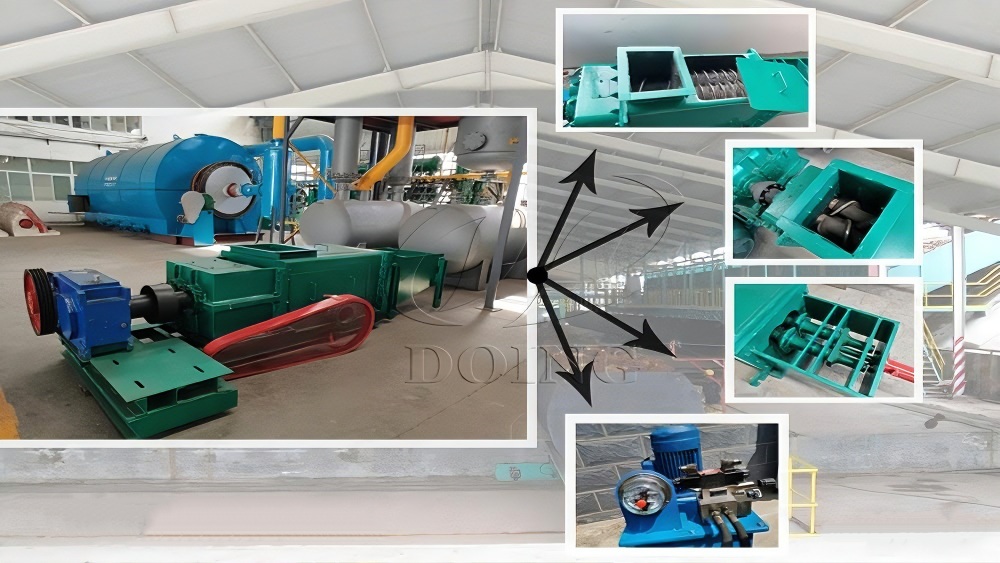

Henan Glory palm oil press machine display

Advantages of the Double Screw Palm Oil Press Machine

1) High Pressing Efficiency: The double screw structure generates large and continuous squeezing pressure, effectively adapting to the high oil content characteristics of palm fruits. The unique design of stirring blades and their relative rotation ensure full pressing with a low residual oil rate in the press cake.

2) Long Service Life: The pressing screws are made of 2Cr13 wear-resistant alloy steel and processed through integrated casting technologies, greatly improving hardness and wear resistance.

3) Stable Operation: Equipped with a hydraulic pump (100MPa), the pressure is adjustable, detectable and adjustable in real-time.

4) Flexible Configuration: Can be used as an independent unit or integrated as part of an automated production line.

5) Good Comprehensive Benefits: The low breakage rate helps preserve the integrity of palm kernels, boosting additional income.

Don't overlook this high-performance double screw palm oil press machine! Feel free to contact us for the latest quotation and equipment operation videos.
