Henan Glory Company is a professional manufacturer in the palm oil processing machine industry, committed to designing efficient and practical machinery for global customers. Our engineers have developed the single screw palm oil press machine, with a capacity of 300-500kg/h, to meet the needs of household workshops and small-scale palm oil producers.
This machine, also called a palm oil expeller or mini palm oil processor, features a reasonable and compact structure that is easy to operate and maintain. To better adapt to different working conditions, we offer both electric motor (4kw) and diesel engine (8hp) options, making it suitable for areas with unstable electricity supply. In addition, with a daily processing capacity of 8-12 tonnes, the single screw palm oil press machine is an ideal choice for small palm oil production. It produces red palm oil that can be used directly as cooking oil or sent to a refinery for further processing.
The single screw palm oil press machine
| Item | Specification |
| Capacity (kg/h) | 300-500 |
| Main Power | Motor: 4kw / Diesel: 8hp |
| Main Shaft Speed (r/min) | 25-35 |
| Weight (kg) | 350 |
| Packed Size (mm) | 1500×800×1200 |
| Screw Material | 2Cr13 Wear-Resistant Alloy Steel |
| Structure | Main Press Body + Power Unit |
| Reducer Type | Cycloidal Reducer |
The oil pressing process is manually controlled. An operator adjusts the lock nut in real-time based on visual observation of the material discharge and the actual condition of the palm fruits. This straightforward method requires minimal operational experience.
(1) High Oil Yield & Low Residual Oil Rate: Processes 300-500kg/h efficiently with a notably low residual oil rate in the cake.
(2) Superior Screw Design & Durability: The screw shaft is integrally cast from 2Cr13 wear-resistant alloy steel, offering a service life of up to 1000 hours, far exceeding ordinary carbon steel screws. With proper maintenance, the palm oil press machine can operate stably for over six months.
(3) Smooth Operation & Anti-Blocking: Each screw is meticulously polished before delivery to ensure smoothness, prevent material blockage, and guarantee stable performance right from the start.
(4) Protects Oil Purity: The design of single screw palm oil press machine maintains the integrity of the palm nuts during pressing. This prevents palm kernel oil from mixing with the palm oil, ensuring higher purity and quality of the final product.
(5) Easy to Operate & Install: Features simple manual adjustment. Clear manuals or video guides are provided, enabling easy installation and independent operation by a single worker, perfect for home workshops.
(6) Flexible Power Options: Available with either an electric motor or a diesel engine to suit different regional power conditions.
(7) Low Investment Cost: An affordable solution for family workshops and small-scale plants.

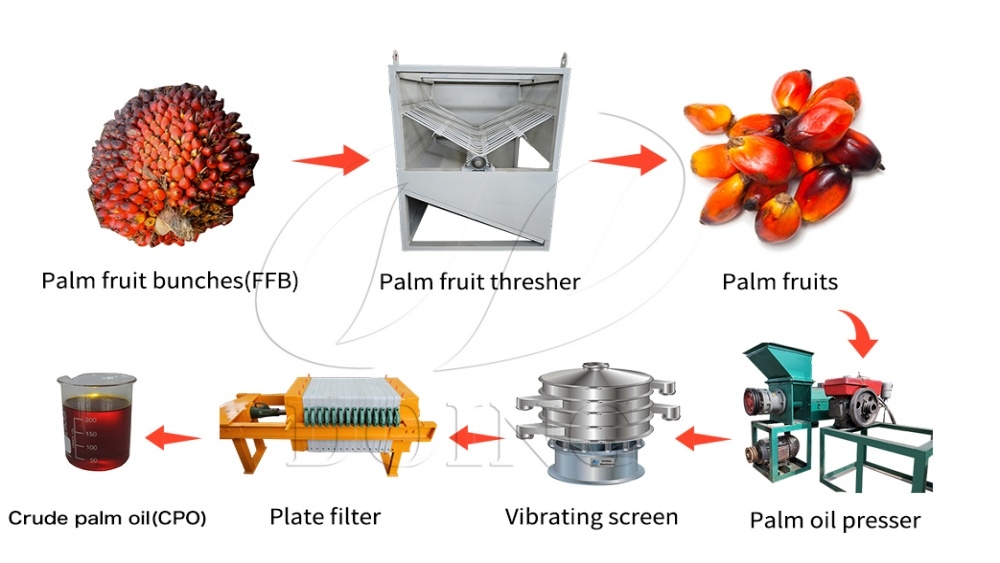

The single screw palm oil press machine can serve as a stand-alone unit or form the core of a simple, space-saving, and cost-effective semi-automatic palm oil production line. A typical compact line includes a Palm Fruit Thresher → a Single Screw Palm Oil Press Machine → a Vibrating Screen (optional) → a Plate Filter. This setup significantly improves local oil extraction efficiency with a low initial investment.
The semi-automatic palm oil production line
Besides this single screw palm oil press machine, we also supply 1t/h, 2t/h, 5t/h, 10t/h, 15t/h double screw palm oil press machines and larger capacity palm oil processing lines. Whether you need a small oil presser or a full plant setup, we can provide the most suitable solution for your business. Contact us for more details and professional service!
