Palm fruit sterilization is the first critical step in every commercial palm oil mill. Proper sterilization preserves fruit quality and creates ideal conditions for threshing, pressing, and clarification.
This guide helps palm oil mill owners make informed equipment investment decisions for higher long-term returns.
During this process, freshly harvested Fresh Fruit Bunches (FFB) are treated with saturated steam under controlled temperature and pressure before entering the threshing and pressing stages.
A standard sterilization process performs several important functions simultaneously:
(1) Deactivates lipase enzymes, preventing the rapid formation of free fatty acids (FFA)
(2) Softens the fruit mesocarp, allowing oil-bearing cells to release oil more easily during digestion and pressing
(3) Loosens individual fruits from the bunch, improving threshing efficiency and reducing fruit loss

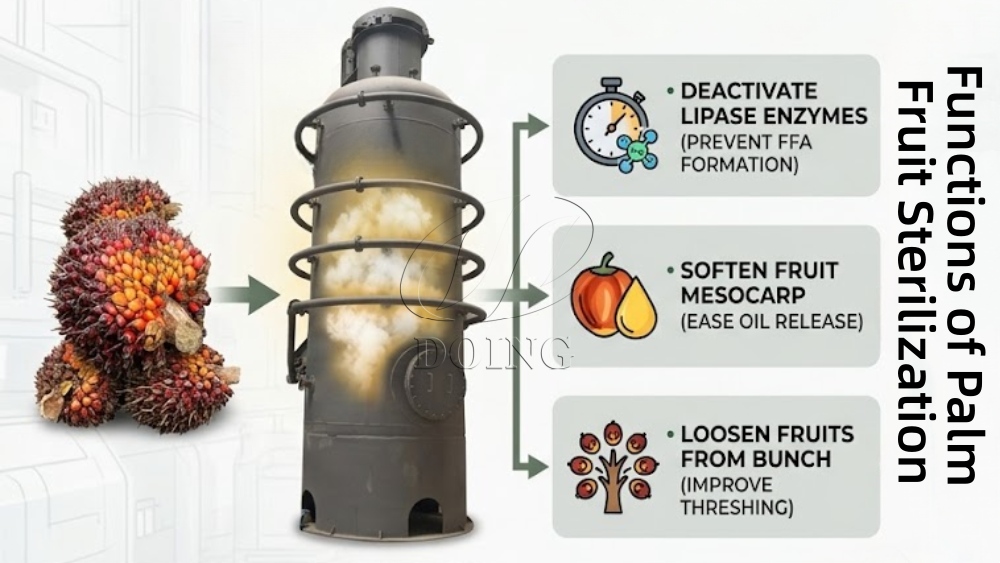

Functions of palm oil sterilization
Palm fruit begins to deteriorate after harvesting. Naturally occurring lipase enzymes start breaking down triglycerides into free fatty acids, while microbial activity accelerates fruit fermentation. If sterilization is delayed, both oil quality and oil yield begin to decline long before the fruit reaches the press.
The benefits of proper sterilization can be summarized in three key areas.
1. Prevents Rapid Free Fatty Acid (FFA) Formation
Proper steam sterilization quickly deactivates highly active lipase enzymes before significant deterioration occurs, helping maintain lower FFA levels, improve crude palm oil quality, and reduce oil losses.
Lower FFA also increases the commercial value of crude palm oil and improves its storage stability.
2. Improves Oil Extraction Efficiency
During sterilization, steam penetrates deep into the fruit mesocarp, softening the fibrous tissue and weakening the oil-bearing cell structure. During digestion and screw pressing, oil can then be released more easily from the softened fruit.
This process helps increase oil recovery while reducing the amount of residual oil remaining in the pressed fiber.
3. Makes Fruit Separation Easier
Besides preserving oil quality, sterilization also plays a vital role in improving fruit separation during the threshing process.
Fresh fruit bunches have a strong connection between the fruitlets and the bunch stalk. After saturated steam treatment, this connection weakens, allowing the fruits to detach more easily during threshing.
Efficient fruit separation offers several important advantages:
- Reduces unstripped bunches (USB)
- Minimizes fruit loss during threshing
- Improves the throughput of the palm fruit thresher
- Reduces unnecessary mechanical damage to the fruit

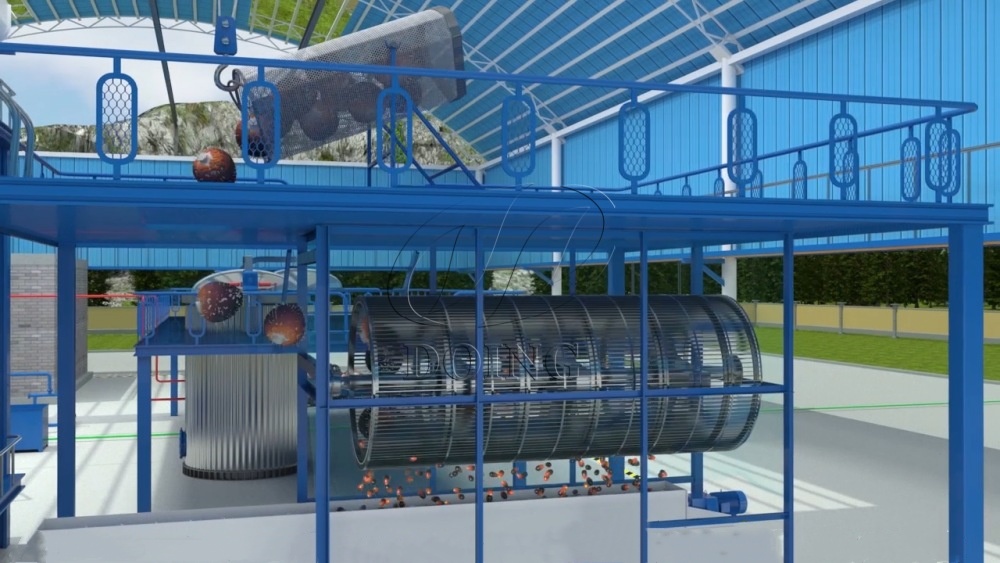

Palm fruit thresher
Once you understand the importance of sterilization, the next question becomes:
Which sterilization equipment is the best choice for your palm oil mill?
The answer depends on your production requirements rather than simply choosing the most advanced machine.
When selecting a palm fruit sterilizer, several factors should be considered:
- Daily FFB processing capacity
- Steam supply
- Available factory space
- Investment budget
- Future business growth
Selecting the right sterilizer from the beginning helps improve operating efficiency, reduce unnecessary investment, and support long-term business growth.
Different palm oil mills require different sterilization solutions. Factors such as production capacity, available utilities, investment budget, and automation requirements all influence equipment selection.
To meet the needs of different customers, Henan Glory offers three practical sterilization solutions for commercial palm oil processing plants.
1. Water Boiling Sterilizer – Best for Low-Investment Startups
Instead of relying on an external steam boiler, the sterilizer heats water directly inside the tank to generate steam for sterilization. A complete sterilization cycle typically takes 90–120 minutes, depending on fruit maturity and batch size. Although the sterilization cycle is longer than steam-based systems, its simple structure, easy operation, and low initial investment make it an ideal choice for entrepreneurs entering the palm oil industry with a limited budget.
Sterilization Cycle:
90–120 minutes
Key Advantages:
- No external boiler required
- Lower initial investment

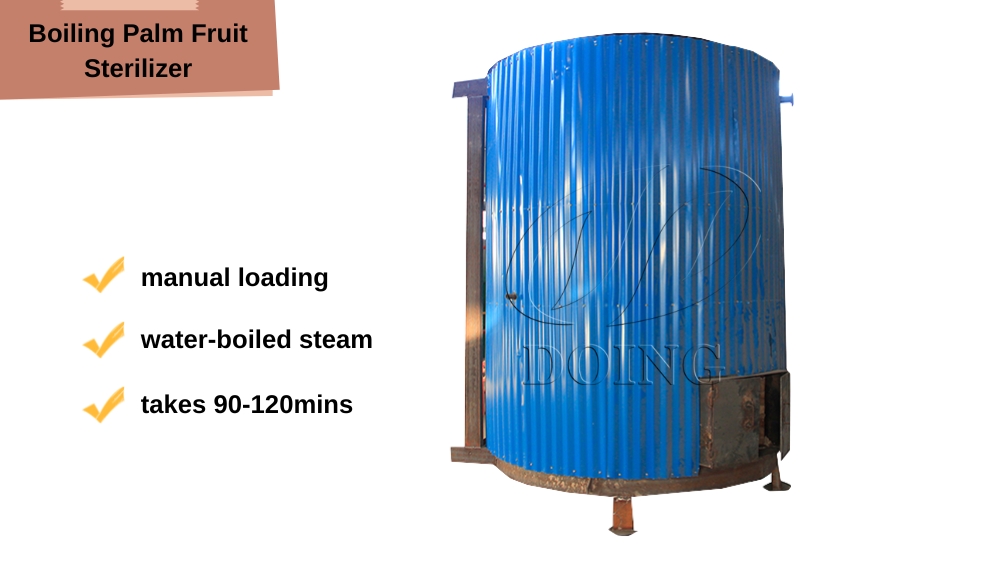

Water boiling palm fruit sterilizer
2. Steam Sterilization Tank – Best for Higher Processing Efficiency
Using saturated steam supplied by an external boiler, the steam sterilizer typically completes sterilization within 60–90 minutes at approximately 145°C, significantly reducing processing time compared with direct-heating sterilization. The faster and more uniform steam heating helps ensure effective enzyme deactivation, stable crude palm oil quality, and higher daily throughput, making it an excellent investment for commercial palm oil mills.
Sterilization Cycle:
60–90 minutes
Key Advantages:
- Faster sterilization cycle
- Uniform and stable steam heating
- Automatic door opening available

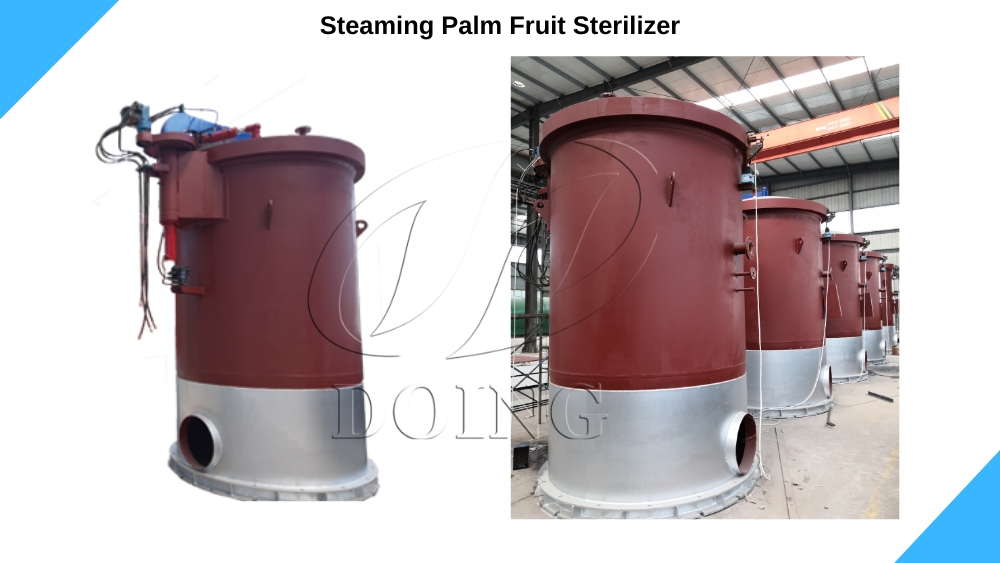

Steam palm fruit sterilization tank
3. Vertical Steam Sterilizer – Best for Automated Palm Oil Mills
The Vertical Steam Sterilizer is designed for commercial palm oil mills seeking greater automation and lower labor costs. Operating under the same sterilization conditions (145°C, saturated steam) as conventional steam sterilization tanks, it integrates seamlessly with automatic conveying systems that feed fresh fruit bunches into and discharge them from the sterilizer automatically. This continuous material handling minimizes manual labor, improves workflow efficiency, and supports stable, high-volume production.
Sterilization Cycle:
60–90 minutes
Key Advantages:
- Higher automation level
- Continuous automatic material handling
- Reduced labor requirements

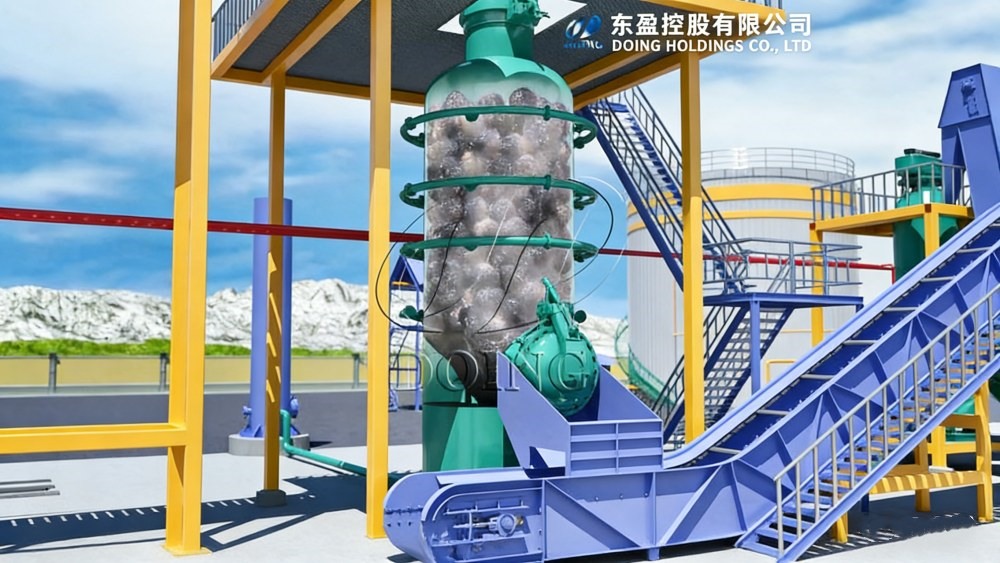

Vertical automatic palm fruit sterilizer
Quick Overview
| Water Boiling Sterilizer | Steam Sterilization Tank | Vertical Steam Sterilizer | |
| Sterilization Cycle | 90–120 min | 60–90 min | 60–90 min |
| Initial Investment | Low | Medium | High |
| Automation Level | Manual | Semi-auto / Optional auto door | Fully automatic continuous feed |
| External Steam Boiler Required | No | Yes | Yes |
Q: What is the difference between batch sterilization and continuous sterilization?
A: Batch sterilization processes one sterilizer load at a time — filling, sterilizing, and emptying before starting the next cycle. Continuous sterilization (as used in vertical steam sterilizers) integrates with automatic conveying systems to feed and discharge FFB continuously, achieving higher throughput with less manual labor. Batch systems are simpler and lower in investment; continuous systems suit large-scale 24/7 operations.
Q: Can over-sterilization affect palm oil quality?
A: Yes. Excessive sterilization time or unnecessarily high temperatures may over-soften the fruit, increase moisture content, and make downstream processing less efficient.
Q: Which sterilization solution is best for a startup palm oil project?
A: For small-scale projects with limited investment, a Water Boiling Sterilizer is often the most economical option because it does not require an external steam boiler. As production capacity increases, a Steam Sterilization Tank or Vertical Steam Sterilizer can provide higher efficiency and greater automation.
Q: How do I know which sterilizer is right for my palm oil mill?
A: Share your daily FFB capacity, steam supply availability, and budget range with us, and we’ll send you a tailored sterilization solution.
Looking for the right palm fruit sterilizer for your project?
Choosing the right sterilization equipment is only one part of building a successful palm oil processing plant. An efficient palm oil production line requires every processing stage—from sterilization and threshing to pressing, clarification, kernel recovery, and refining—to work together as an integrated system.
