Small Vertical Sterilizer

The small vertical sterilizer manufactured by Henan Glory Company is designed specifically for small palm oil processing enterprises, providing a compact, efficient, and easy-to-operate solution for sterilizing palm fruit bunches. This small vertical sterilizer can process 1-2 tons of palm fruit bunches per hour, occupies a small footprint, and is easy to install, making it an ideal core equipment for upgrading or building new palm oil pressing production lines in small processing plants.

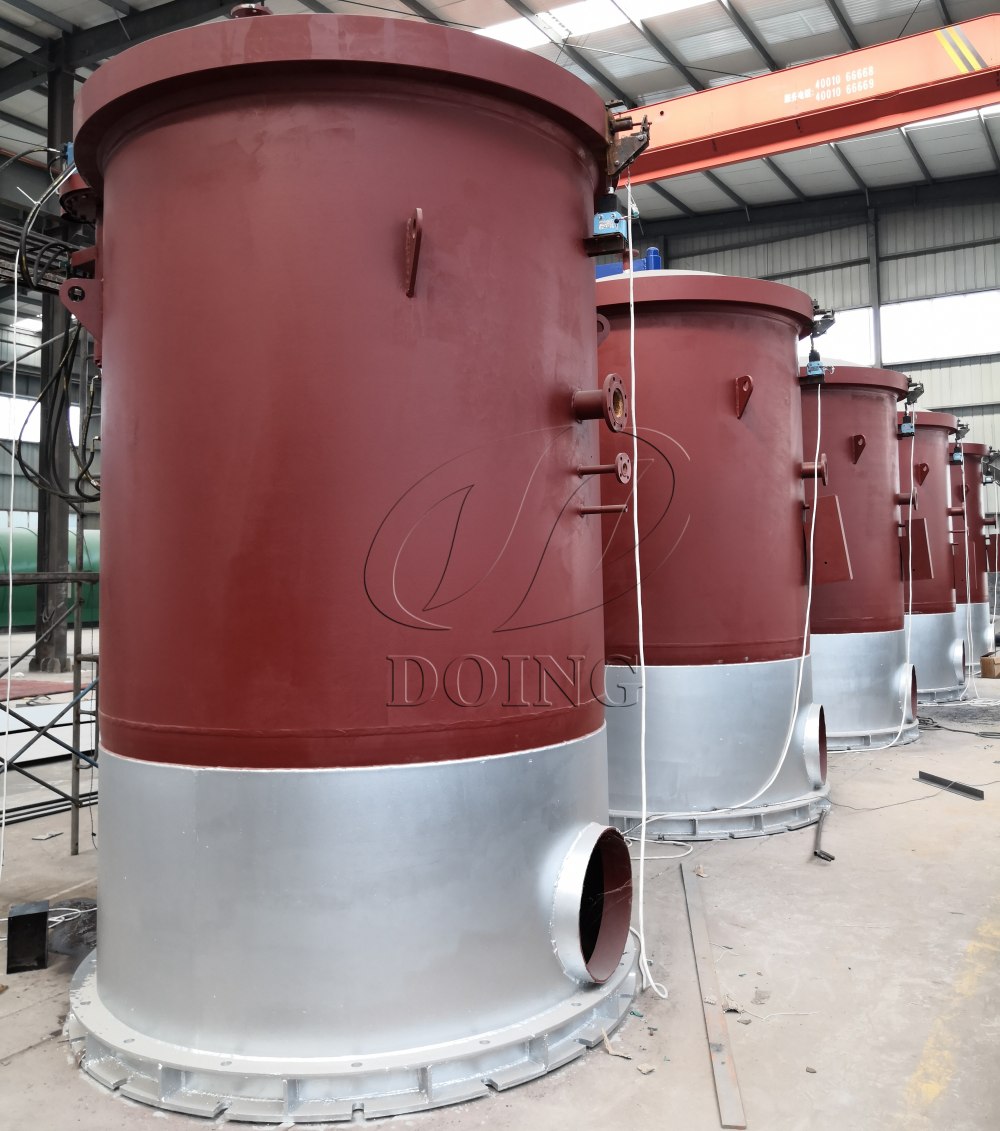

The small vertical sterilizers manufactured by Henan Glory Company

Brief Introduction of the Small Vertical Sterilizer

The small vertical sterilizer is a mature and efficient palm fruit pretreatment equipment developed for small-batch palm fruit processing. Using saturated steam as the heating medium, small vertical sterilizer achieves uniform sterilization of palm fruit bunches by maintaining a specific temperature and pressure environment, effectively avoiding the problem of uneven heating that is common in traditional small-scale workshop processing. It also prepares the palm fruit bunches for subsequent fruit stripping. Besides, it features a simple design, utilizing pre-assembled components and easy connection methods. You can quickly install and operate it by following our provided installation video and illustrated instruction manual.

Efficient palm fruit pretreatment equipment

Key Specifications of the Small Vertical Sterilizer

(1) Type: Vertical Sterilization Tank (with fruit cage)

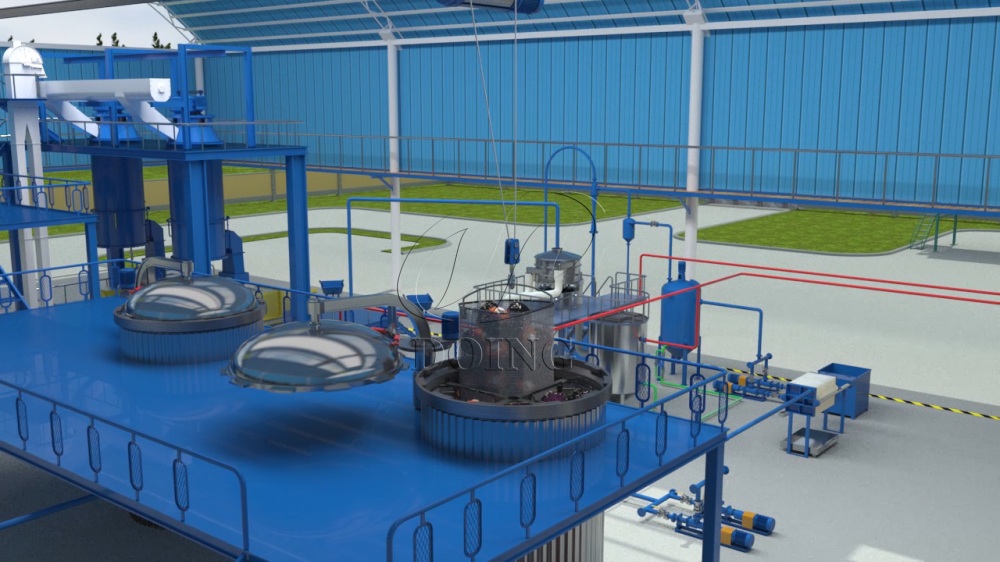

The small vertical sterilizer with fruit cages

(2) Common Capacity: For palm oil processing lines under 5 tons per hour

(3) Operating Pressure: Typically 0.3-0.6 MPa (Commonly 0.3MPa)

(4) Operating Temperature: Standard range 120-160°C (Commonly 145℃)

(5) Sterilization Time: 60-90 minutes per batch

(6) Heating Medium: Saturated Steam (requires boiler)

(7) Material: Inner Tank: SUS304 Stainless Steel; Jacket: SUS304 Stainless Steel/Q235-B Carbon Steel (Optional)

(8) Overall Dimension (D×H): 500mm×1800mm - 1000mm×3500mm (Adaptive to Volume)

(9) Weight: 300-3000kg (Calculated by Volume)

(10) Design: Features a quick-release automatic door and integrated safety systems

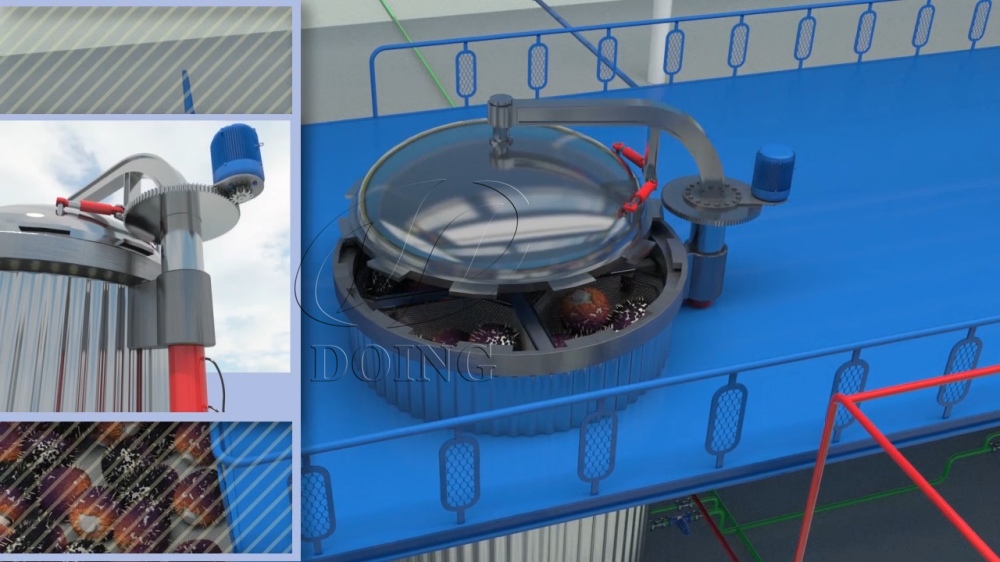

Automatic doors for small vertical sterilizer

Core Design & Functionality of the Small Vertical Sterilizer

The small vertical sterilizer is constructed as a sealed vertical pressure vessel. It utilizes saturated steam circulating within a jacket to rapidly achieve and maintain a set sterilization temperature (commonly around 145°C). A simple yet effective control system monitors and regulates internal conditions. Key functional components include a safety pressure relief valve, temperature controls, and vents for air and condensate discharge. The design of small vertical sterilizer prioritizes operational safety and consistent thermal performance for small batches.

Features & Benefits of the Small Vertical Sterilizer

(1) Compact Vertical Footprint: Occupies significantly less floor space than horizontal sterilizers, ideal for constrained workshop layouts.

(2) Rapid & Uniform Heating: Efficient steam-based system ensures quick heat-up and consistent temperature distribution throughout the batch.

(3) Durable & Robust Structure: Made with food-grade SUS304 stainless steel for durability, corrosion resistance, and easy cleaning.

(4) Simple Operation & Control: User-friendly interface and automated pressure/temperature management reduce complexity and manual oversight.

(5) Low Investment Costs: Efficient thermal design and small batch size contribute to reduced steam and energy consumption per ton of palm fruits. At the same time, there are few wearing parts, maintenance is simple, and the subsequent operation and maintenance costs are low.

(6) Flexible Integration: Can function as a standalone palm fruit pretreatment unit or be easily paired with palm fruit strippers, palm fruit digester, palm oil presser , palm oil clarifier and filter.

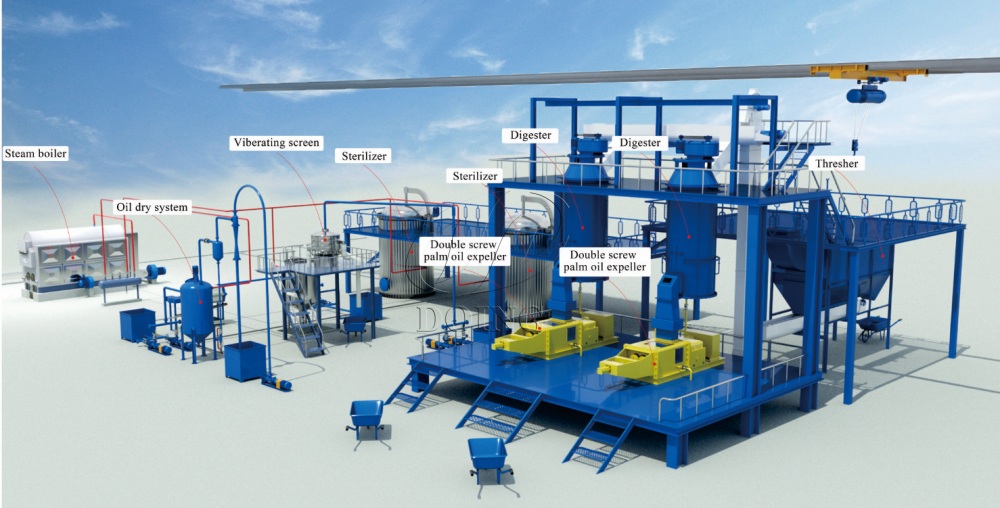

Palm fruit oil processing line

In addition to small vertical sterilizers, Henan Glory Company also offers boiling sterilizers and automatic vertical steam sterilizers. We can customize a palm oil processing solution tailored to your specific needs, site conditions, and budget. Whether you are an individual operator, a cooperative, or a startup, our professional technical team will provide one-stop service from equipment selection and solution design to installation guidance and after-sales maintenance, helping you start your palm oil processing business at a low cost. Contact us today for a detailed product catalog and accurate pricing information!
