Palm Fruit Digester

In the palm oil extraction process, the palm fruit digester plays a pivotal role in bridging the threshing stage and the pressing stage. It is specifically designed to thermally cook and mechanically digest the sterilized and threshed palm fruits into a homogeneous pulp, creating optimal conditions for the subsequent pressing stage. Based on extensive industry experience, Henan Glory Company manufactures vertical palm fruit digesters, which have become the core guarantee for improving oil yield and protecting downstream equipment, thanks to their outstanding cell rupture performance and stable operation.

1. Core Purpose & Function of Palm Fruit Digester

The palm fruit digester is designed to achieve three core objectives:

(1) Mechanical Cell Rupture: The stirring arms (often called a digester knife) inside the palm fruit digester continuously pound and stir the palm fruits, thoroughly breaking down the fiber structure and oil-bearing cells of the palm fruit to release the oil.

(2) Thermal Conditioning: The exterior of the palm fruit digester is usually equipped with steam coils. During the palm fruit digestion process, steam is indirectly introduced to maintain the pulp temperature at 90–95°C. This heating effectively reduces oil viscosity, breaks down pectin, and facilitates the coalescence and separation of oil droplets.

(3) Preparation Before Pressing: The digested palm fruit is stirred into a uniform and fine slurry, ensuring consistent feed for the subsequent pressing stage, thereby maximizing pressing efficiency and final oil yield.

2. Structure & Working Principle of Palm Fruit Digester

Henan Glory Company's palm fruit digesters feature a scientific and robust design:

(1) Main Structure: Designed as a large vertical cylinder with a flat bottom, constructed from high-strength steel to withstand high temperature and pressure.

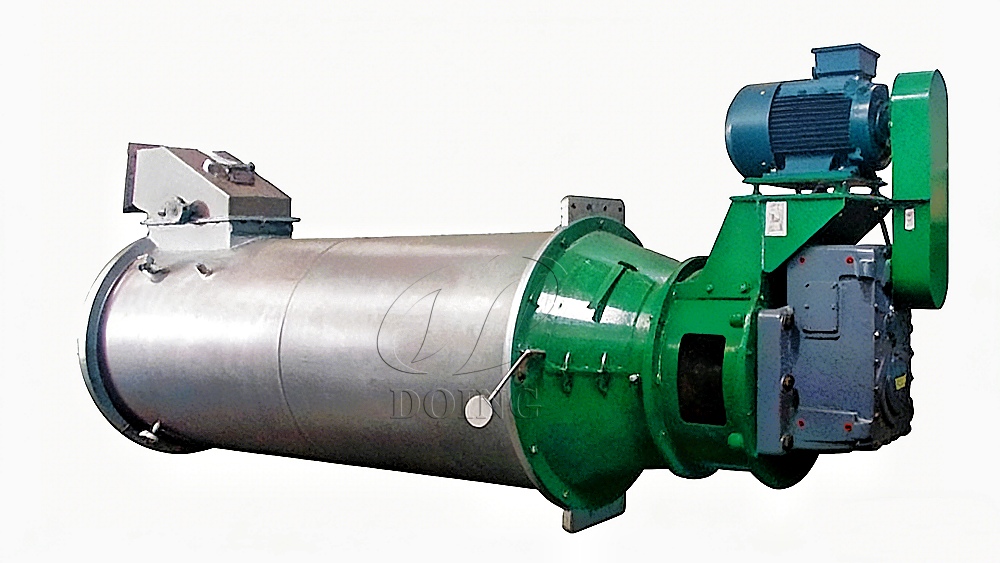

Henan Glory Company's palm fruit digester

(2) Feed Inlet: Located at the top or end of the palm fruit digester, it is used to receive palm fruits from the previous process, threshing. It is usually equipped with a feed hopper and adjustment device.

(3) Discharge Door/Valve: Located at the bottom of the palm fruit digester, it is used to discharge the digested pulp, allowing it to flow into the next processing equipment—the screw palm oil press machine.

(4) Core Agitation System: Multiple tiers of heavy-duty stainless steel stirring arms (digester knives) are mounted on the central main shaft. Driven by an electric motor, they rotate at an optimized speed of approximately 25–26 RPM, ensuring thorough pounding and mixing of the palm fruits.

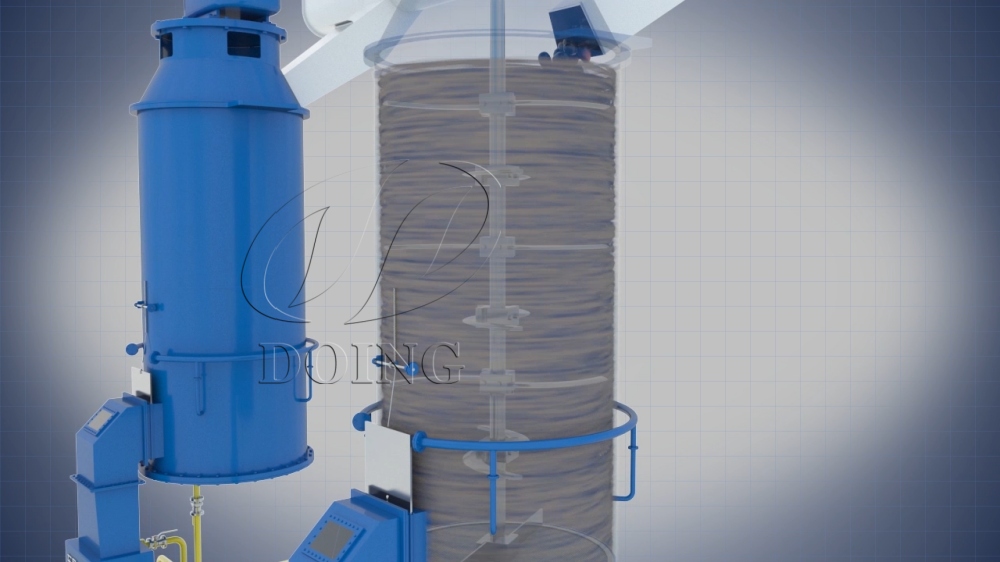

The palm fruit digester with stirring arms

(5) Sight Glasses, Pressure Gauges, Safety Valves, Temperature Sensors: Used for monitoring and ensuring safety during the operation of palm fruit digester.

(6) Drive & Transmission System: Includes motor, gear reducer, couplings, etc., providing the necessary torque for stirring.

(7) Automated Control: It can be integrated with temperature monitoring and variable speed control for precise process parameter management.

3. Type Comparison & Model Recommendation of Palm Fruit Digester

Henan Glory can offer both horizontal and vertical designs. Based on extensive feedback from actual production, traditional horizontal palm fruit digesters have limitations such as short material retention time, incomplete digestion, and suboptimal oil yield. Therefore, we strongly recommend and have optimized our vertical palm fruit digester. Its advantages include:

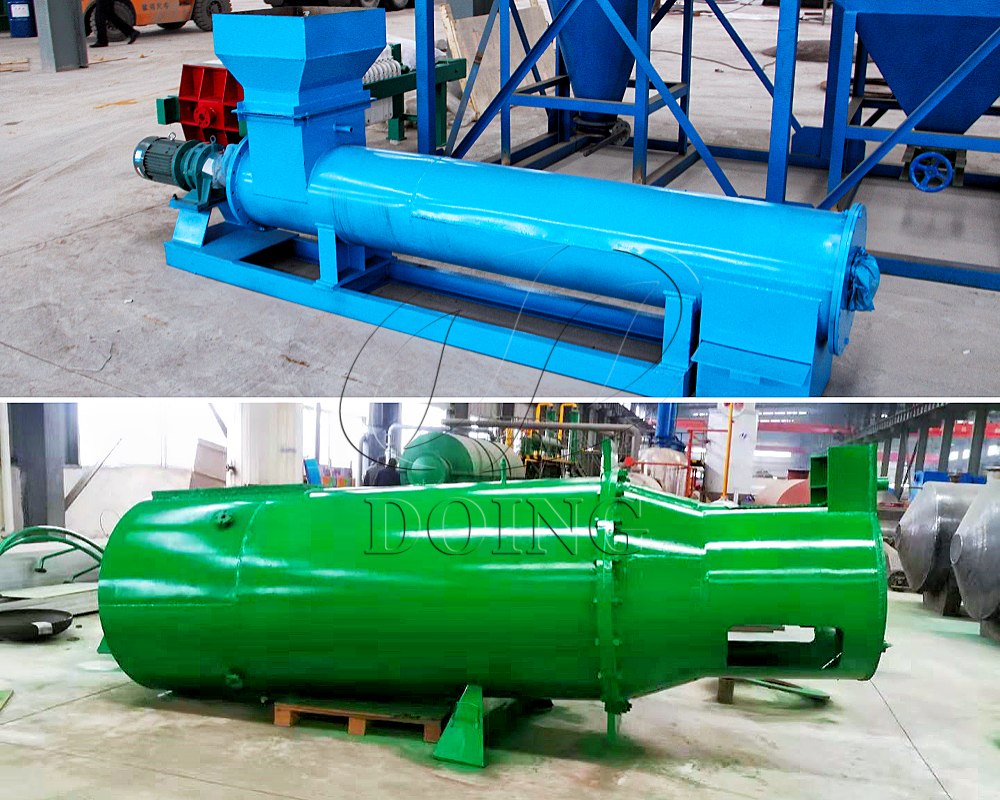

The horizontal and vertical palm fruit digesters

(1) More Thorough Action: The vertical design allows for longer palm fruits retention time inside the palm fruit digester, ensuring more complete pounding and heating of the fruit.

(2) Higher Oil Yield: Effective pre-processing facilitates easier oil release, directly improving the overall oil extraction rate.

(3) Protects Downstream Equipment: The well-digested, soft pulp significantly reduces the pressure and wear on subsequent pressing equipment, such as the high-efficiency double-screw palm oil pressing machine manufactured by Henan Glory Company, extending the service life of the entire production line.

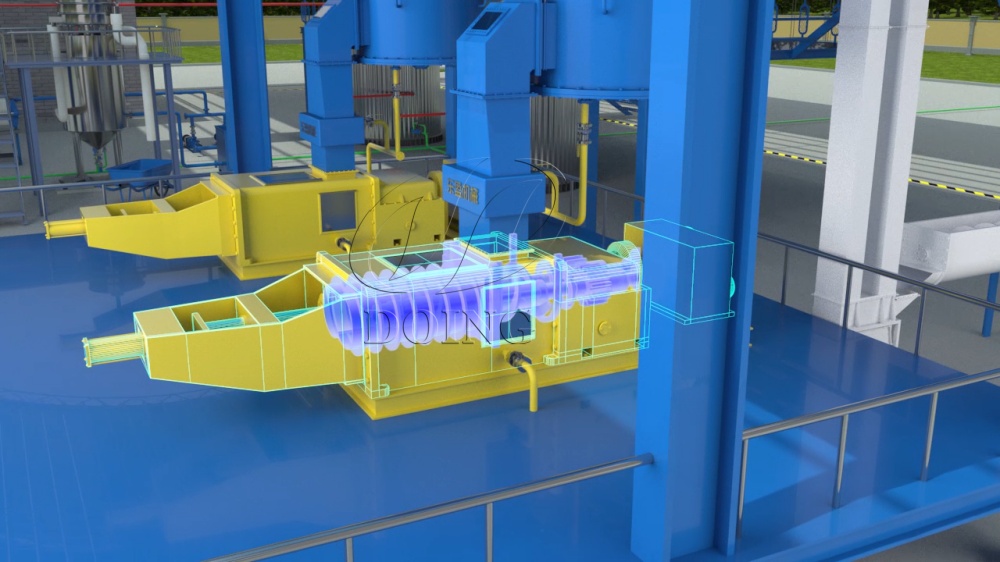

High-efficiency double-screw palm oil pressing machine

4. Key Features & Benefits

(1) High-Efficiency Cell Rupture, Significant Oil Yield Improvement: The unique agitator design works in synergy with the heating system, achieving a high oil cell rupture rate and laying the foundation for high oil extraction.

(2) Robust & Durable, Easy Maintenance: Critical components use wear-resistant materials. The structure is reliable, the operation interface is user-friendly, and maintenance costs are low.

(3) Excellent Compatibility & Synergy: When paired especially with a double screw palm oil pressing machine, it forms a perfect synergy of "thorough digestion -> efficient pressing," greatly enhancing the overall production line's production efficiency and stability.

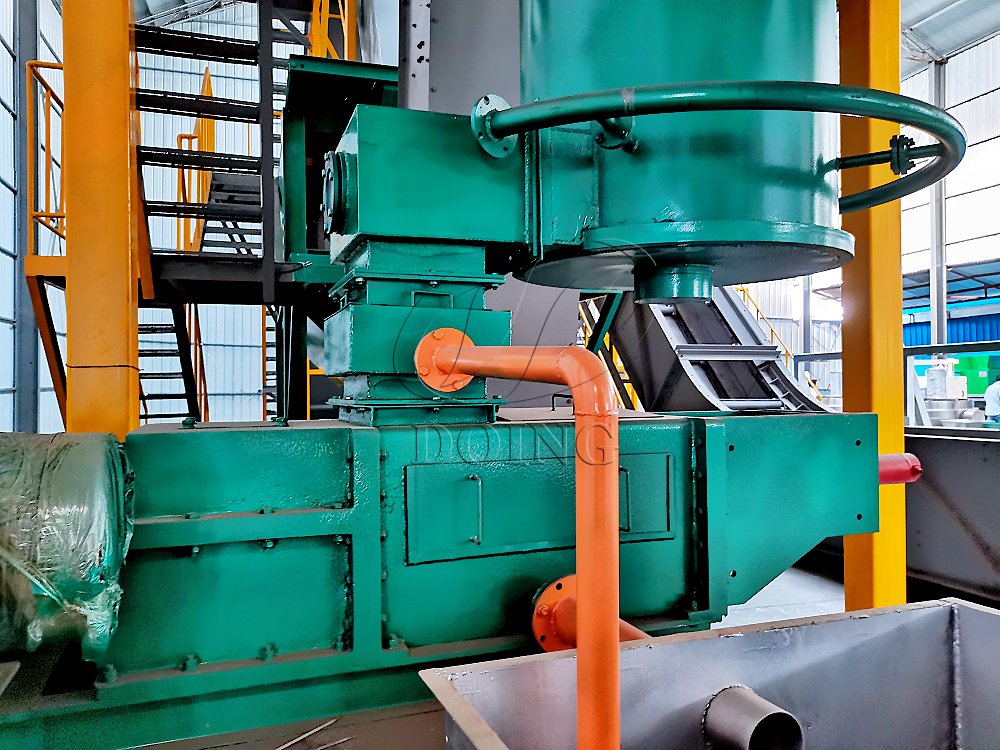

The palm fruit digester and palm oil pressing machine

(4) Flexible Customization: We provide fully customized solutions ranging from 1 TPH to 15 TPH to meet various client capacity requirements.

In conclusion, palm fruit digestion is a critical pre-processing step that determines pressing efficiency and oil quality. The Henan Glory's vertical palm fruit digester combines efficient mechanical design with precise thermal control, addressing the pain points of traditional equipment. Choosing Glory's palm fruit digester means opting for higher oil yield, lower equipment wear, and more stable production profits. Please feel free to contact us for a tailored solution and professional technical support.
