Step-by-step guide to operating a palm oil extraction machine safely

Palm oil extraction machines are essential for efficiently processing fresh fruit bunches (FFB) into crude palm oil (CPO). However, improper operation can lead to accidents, equipment damage, and reduced oil quality. This guide provides a step-by-step approach to operating a palm oil extraction machine safely and effectively. Here's a step-by-step guide to help you operate palm oil extraction machine safely:

1. Preparation and Inspection

Before operating a palm oil extraction machine, ensure all components are in good condition.

·Inspect the machine for loose bolts, leaks, or damaged parts.

·Check lubrication levels (gearbox, bearings) to prevent overheating.

·Verify electrical connections (if motor-driven) to avoid short circuits.

·Ensure emergency stop buttons are functional.

·Wear protective gear (gloves, goggles, steel-toe boots, and ear protection).

2. Preparing the Fresh Fruit Bunches (FFB)

Proper preparation ensures operating palm oil extraction machine safely:

·Sterilize the FFB (steam for 60-90 minutes to soften the fruits).

· Remove impurities (dirt, stones, and foreign objects).

·Thresh the FFB (separate fruits from bunches using a thresher).

3. Starting the Extraction Machine

Follow the manufacturer’s instructions for operating palm oil extraction machine safely:

Power on the machine (ensure voltage matches requirements).

Allow the machine to warm up (if required) for 5-10 minutes.

Check conveyor belts and augers for smooth movement.

4. Load Palm Fruits Into the Machine

Prepare Fresh Palm Fruits: Make sure the palm fruits are harvested and cleaned before loading them into the machine. Remove any foreign debris such as leaves or twigs.

Loading the Machine: Carefully load the palm fruits into the machine’s feeding hopper. Do not overload it to ensure smooth operation and prevent jamming.

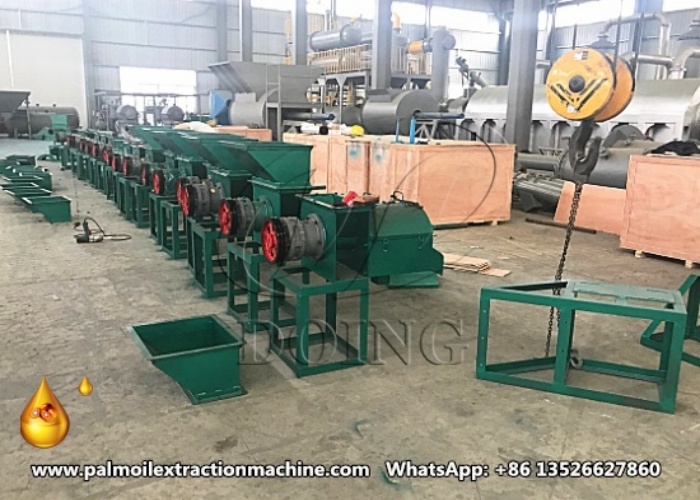

Palm oil pressing machines

5. Feeding the Fruit into the Machine

Proper feeding prevents blockages, improves efficiency and ensures safe palm oil extraction machine operation:

·Load fruits gradually to avoid overloading the machine.

·Monitor the hopper to ensure a steady flow.

·Avoid inserting hard objects (stones, metal) that could damage the machine.

6. Monitoring the Extraction Process

Stay vigilant during operation:

·Check oil flow from the extraction outlet.

·Monitor pressure and temperature (excessive heat can degrade oil quality).

·Listen for unusual noises (grinding, squeaking) that indicate mechanical issues.

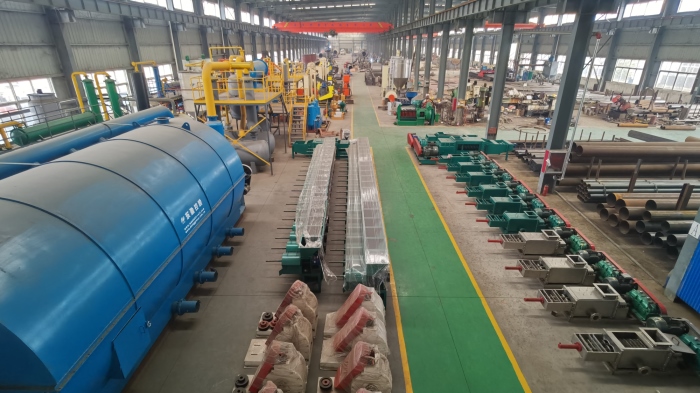

The picture of Henan Glory palm oil machine workshop

7. Separating Oil, Fiber, and Nuts

After extraction:

·Filter the crude oil to remove debris.

·Collect palm kernels (if the machine separates them).

·Dispose of waste fiber properly (can be used as boiler fuel).

8. Shutting Down the Machine Safely

Proper shutdown prevents damage:

Stop feeding fruits and let the machine run empty for 2-3 minutes.

Turn off the power and engage safety locks.

Clean the machine (remove residual pulp and oil to prevent clogging).

Inspect for wear and tear.

9. Post-Operation Maintenance

Regular maintenance extends machine lifespan:

· Lubricate moving parts weekly.

· Tighten loose bolts and belts.

·Replace worn-out components (screws, filters, seals).

As a manufacturer specializing in the production of palm oil extraction machine, the above is what Henan Glory Company provides to palm oil practitioners through this article about some precautions on the operation and maintenance of palm oil extraction machine.Operating a palm oil extraction machine safely requires proper preparation, monitoring, and maintenance. By following this step-by-step guide to operating a palm oil extraction machine safely, you can maximize efficiency, prevent accidents, and ensure high-quality palm oil production.
