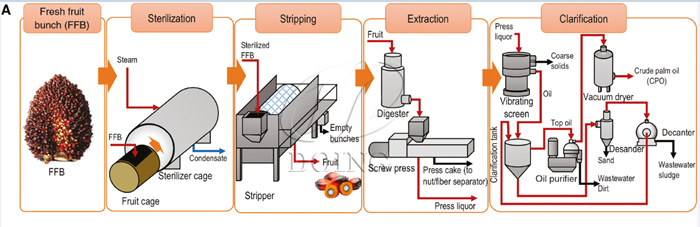

Process flow diagram for palm oil production

Palm oil mill process flow diagram mainly uses the image model to simulate the main processes of palm oil production, which can clearly express the structure of the whole palm oil mill and the operation process of the palm oil mill process. The following is 15-120tph large scale palm oil mill process flow diagram.

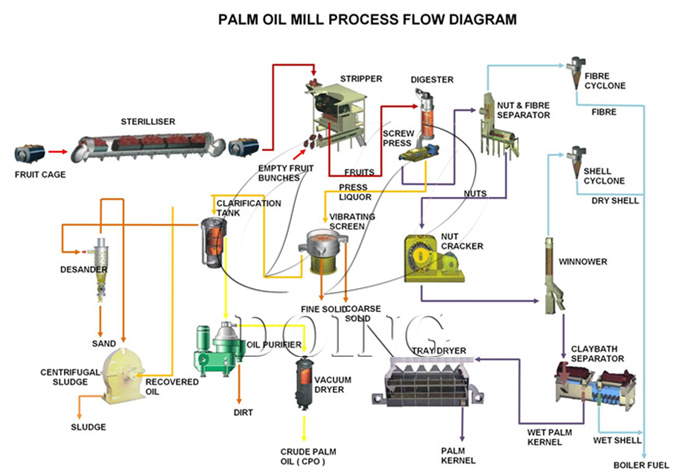

Palm oil mill process flow diagram

Process flow diagram for palm oil production

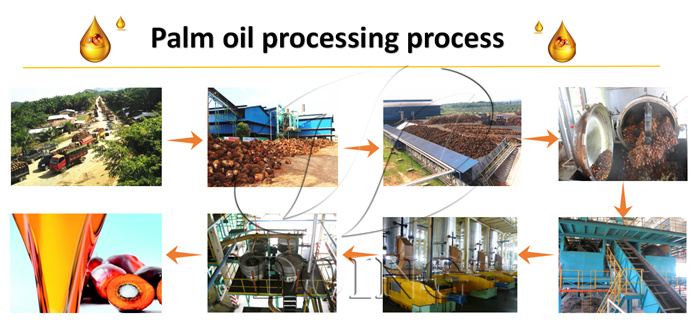

The entire palm oil mill process involves the reception of fresh fruit bunches from the plantations. Then the palm fruit bunches will be sent to palm fruit sterilization station. In this station, it uses high temperature to softening the fruit and kill the bacteria, this will increase the moisture content of fruit and separate the fruits easily, so finally it will easy to get oil and separate palm kernel, also avoid the raising of free fatty acid. (Note: From picking to sterilization, the time shall not over 24 hours.) After palm fruit sterilization process, the palm fruit will be sent to palm fruit threshing station to separate palm fruit and empty fruit bunches(EFB). Next, the palm fruit need to be mashed into palm pulp which is better for palm oil pressing process. Finally, we use double screw palm oil presser to get crude palm oil, which improved the production efficiency greatly. After this step, the palm oil production process is not over. The crude oil need to be further treated to purify and dry it for storage and export.

Palm oil processing plant production list:

The following is the main machines used in palm oil mill process:

Palm oil mill process flow diagram

This is just a brief introdution of palm oil mill process, if you want to know more, please write down your requirements in the table below. Once we received your inquiry, our staff will reply you asap!
