Many palm oil investors struggle with the same question: How large a processing machine do I need for my plantation? Choose too small, and you'll bottleneck your harvest. Choose too large, and you'll waste capital on idle capacity. This guide eliminates the guesswork.
For a palm plantation of approximately 110 hectares, a 500 kg/h simple type palm oil processing machine is the most suitable choice.
This compact, cost-effective system is designed for small to medium-scale producers. It forms a semi-automated processing line covering the essential steps from threshing to oil extraction and filtration. The core equipment includes:
| Component | Function |
| Simple Palm Fruit Threshing Machine | Automatically separates palm fruits from bunches with an internal rotating mechanism. |
| Single-Screw Palm Oil Press (500 kg/h) | 4 kW motor (or 8 hp diesel engine), manual nut adjustment to control discharge. Economical and easy to operate. |
| Plate and Frame Filter | Passes crude oil through multiple layers of filter cloth to produce clear, market-ready oil. |
Besides the complete line, you can also choose a single oil pressing machine if your investment budget is tight — scale up gradually as your business grows.

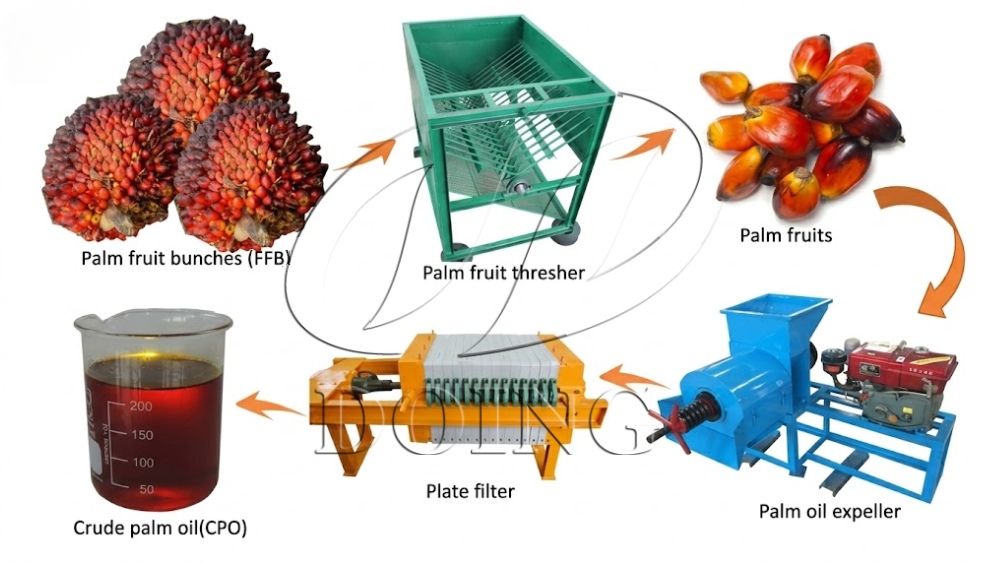

500 kg/h simple type palm oil processing machine
If your plantation covers approximately 220 hectares, a 1 t/h palm oil pressing machine or complete production line is the recommended capacity.
For this scale, Henan Glory offers three distinct production line types, so you can select the best fit based on your production goals:
Minimal investment, quick to deploy
Components: thresher → 1 t/h double-screw palm oil press → filtration
The 1 t/h double screw oil press equipped with 7.5 kW motor features 2Cr13 wear-resistant alloy steel double screws with hydraulic pump station control. Compared to the 500 kg/h single screw oil press, it offers:
(1) Easier operation — hydraulic system automatically adjusts chamber pressure
(2) No material clogging — dual counter-rotating screws prevent blockages even under continuous feeding
(3) Lower residual oil rate — progressive pressure from two interlocking screws extracts more oil per batch
Best for: budget-conscious startups and small farms that want higher extraction efficiency.

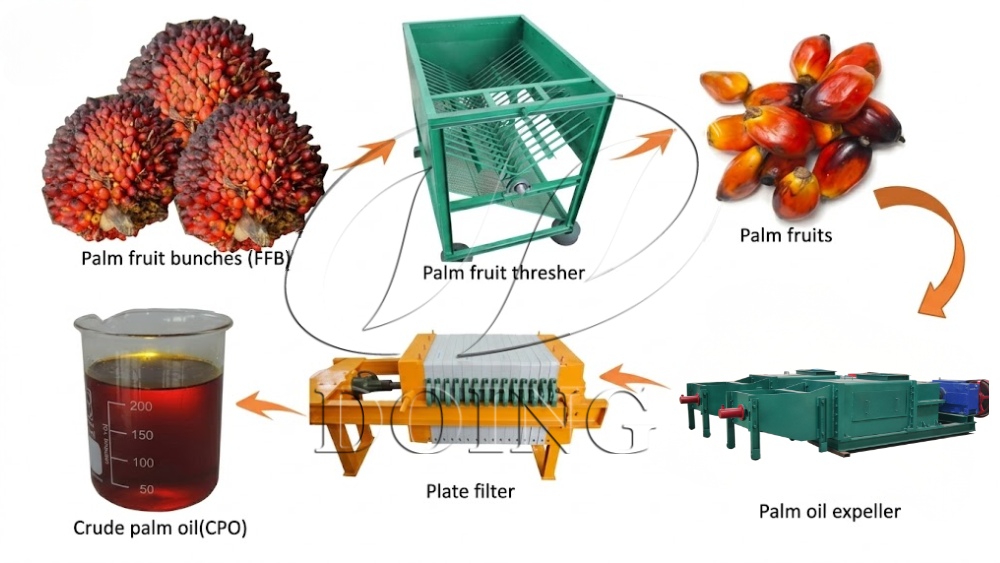

1 t/h simple type palm oil processing machine
Our innovative free-installation design — unpack, assemble, and start processing. Shipped in three frames (loaded into three containers for easy transport):
| Frame | Content | Details |
| Frame 1 — Boiling Sterilization | Hot water tank + 3 boiling sterilization tanks with fruit cages | No boiler needed — water is heated directly by burning firewood or biomass fuel to generate steam for heating. Sterilization time: 90–120 minutes |
| Frame 2 — Threshing & Pressing | Drum-type thresher + 1 t/h double-screw oil presses | Thresher with 98% threshing rate; high-efficiency double-screw oil extraction |
| Frame 3 — Oil Filtration & Drying | Oil clarification tank → rotary vibrating screen → plate filter → vacuum dehydration system | Multi-stage purification for crude palm oil |
Best for: Investors with a sufficient budget, requiring rapid production start-up, and seeking equipment that is easy to transport and install.

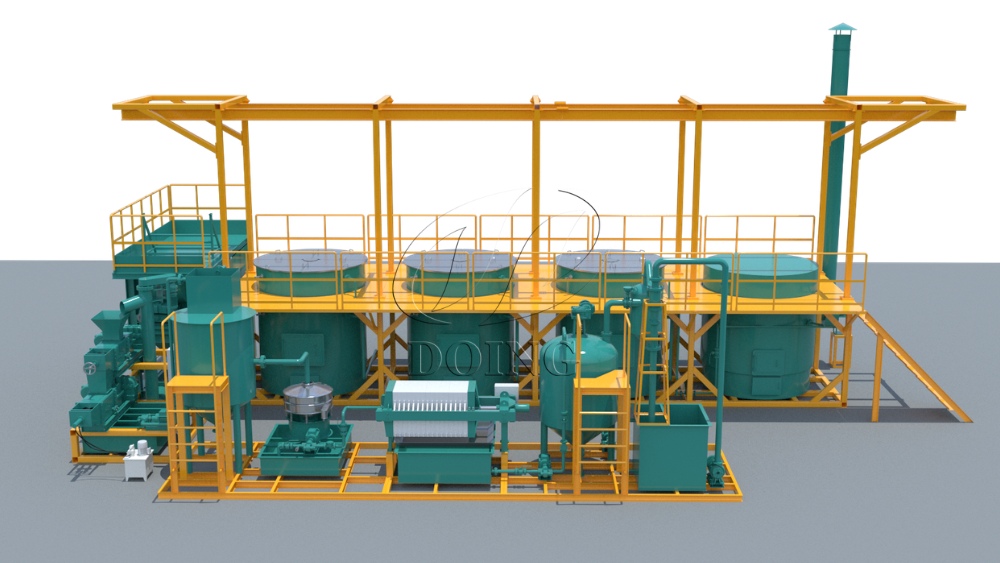

1 t/h palm oil processing machine
The key difference from Option 2 is the sterilization method. While Option 2 uses boiling sterilization, this line uses steam sterilization tanks that requires a steam boiler.
Steam sterilization tank with fruit cages — steam is generated by an external boiler and fed into the tank for heating.
- Sterilization time: 60–90 minutes (faster than boiling).
- Optional automatic hydraulic door available for better sealing and sterilization effect
- Equipped with vertical digester for better pulp mashing and pre-oil collection
Best for: Palm oil producers who prioritize quality and oil yield.

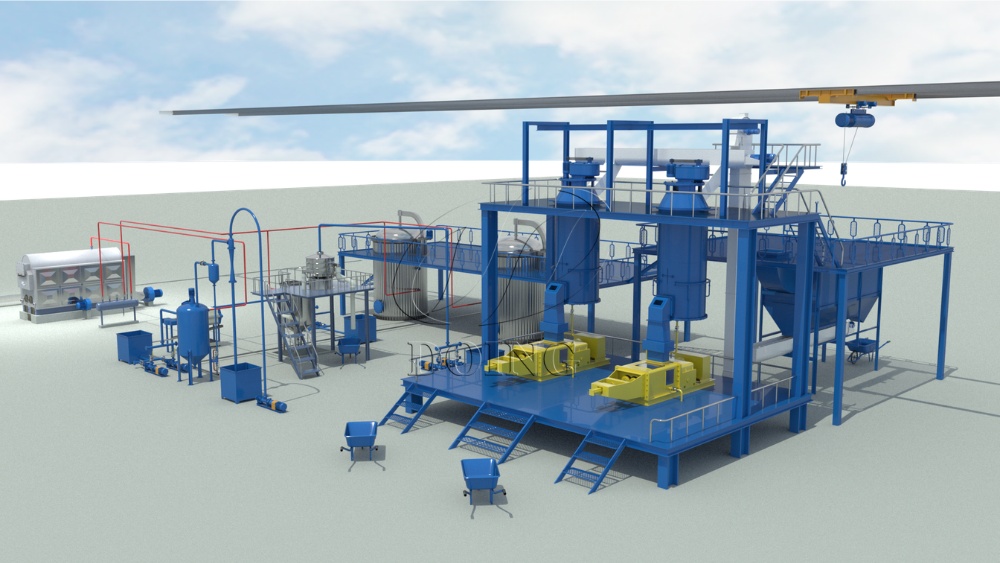

1 t/h palm oil processing machine
For large-scale plantations of approximately 1,100 hectares, a 5 t/h palm oil processing line is required.
Unlike the 1 t/h lines, the 5 t/h line is designed for fully automated, high-throughput continuous production. Here are the key differences:
| Feature | 1 t/h Line | 5 t/h Line |
| Sterilization | Boiling/steam sterilization tank with fruit cages | Vertical steam sterilizer with heating coils |
| Feeding/discharging Method | Manually load the fruit bunches into the fruit cages | Scraper conveyor |
| Processing capacity of the oil press | 1 t/h double screw palm oil press | 5 t/h double screw palm oil press |
| Control System | Basic controls with manual intervention | Fully automatic PLC control system |
Best for: Large-scale palm plantation owners who want a fully automated solution.

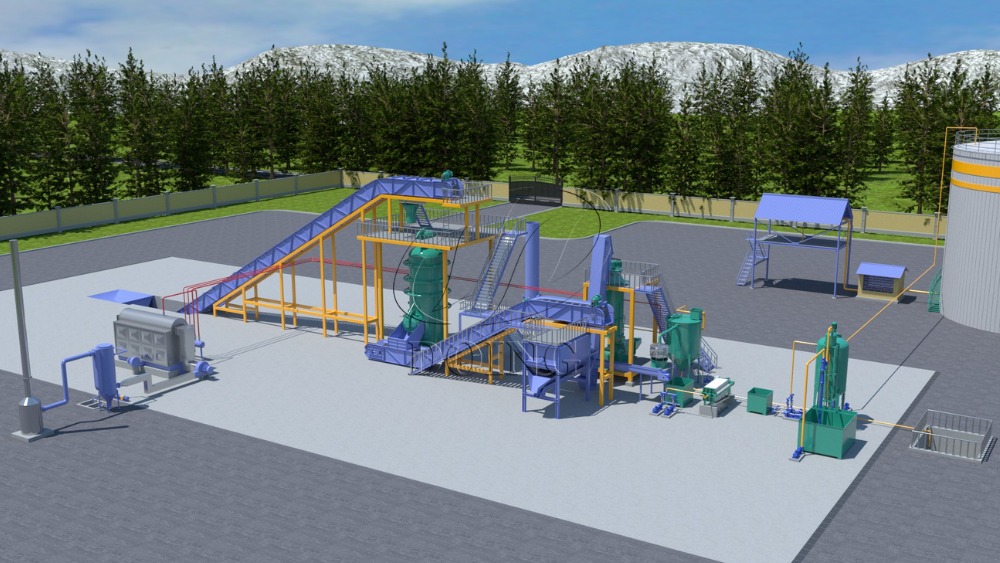

5 t/h palm oil processing machine
Q: Do I need a steam boiler for a 1 t/h palm oil processing line?
A: It depends on the sterilization method you choose. The boiling sterilization line (Option 2) does not require a boiler — water is heated directly by burning firewood or biomass fuel. The steam sterilization line (Option 3) requires a steam boiler to generate steam for heating.
Q: What is the sterilization time for palm oil processing?
A: Sterilization time varies by method: 90–120 minutes for boiling sterilization, 60–90 minutes for steam sterilization. Faster sterilization helps improve extraction efficiency.
Q: How long does it take to install a 1 t/h free-installation palm oil production line?
A: The free-installation design allows you to start production quickly — simply unpack, assemble the three frames, and connect the pipelines and circuits. No complex foundation or heavy installation work is required.
Q: Can I start with a single oil press and add equipment later?
A: Yes. Many small-scale investors start with just the oil press and add the thresher, filter, and sterilization equipment over time as production volume and budget grow.
Q: What is the difference between single screw and double screw palm oil presses?
A: A single screw palm oil press equipped with diesel engine or electric motor (500 kg/h) is simpler and more affordable, with manual adjustment. A double screw palm oil press (1/5/10/15 tons per hour) features hydraulic automatic pressure control, dual counter-rotating screws to prevent clogging, and a lower residual oil rate for higher yield.
Your plantation area directly determines the required processing capacity — but other factors also matter: your expected daily output, power source, and ground conditions all influence the optimal equipment configuration.
Send us the following information, and we'll provide a tailored solution within 48 hours:
1. Your exact plantation area (hectares)
2. Your expected daily output (tons of CPO)
3. Your power source (grid / generator)
4. Your budget range and any special requirements
At Henan Glory, with 14+ years and many successful projects across different countries, we don't just sell palm oil processing machines — we match you with the production capacity that maximizes your return on investment. Contact us today!
